Feed Grinder and Mixer Machine TSFM-10

1. The corn, beans, etc. Into the crusher.
2. High speed rotating blade, corn was crushed into powder.
3. When the powder fineness less than the screen mesh, it down into the mix.
4. At the same time, we can add vegetables in another big funnel, grass, fish, etc. All of these also flow mixing section.
5. The corn flour with large screw conveyor, fish, vegetables, grass etc. Stir well.
6. Completely mixed products fall in the drain hole should be collected.

Place of Origin: China

Brand Name: DANHUA

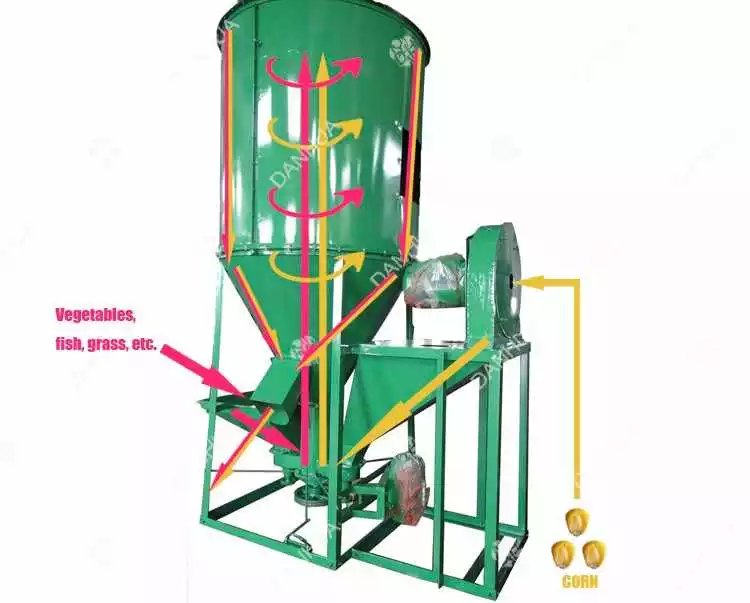

Working Principle

1. A pipe sucked corn, beans, etc., into the crusher.

2. With the high speed rotating blades, the corn were crushed into powder.

3. When the powder fineness is smaller than screen, it flow down to the mixing part.

4. Meanwhile, we could add vegetables, grass, fish, etc., into another big hopper.
All of these also flow to the mixing part.

5. With a big screw conveyor, the corn flour, vegetables, grass, fish, etc., were mixed and mixed upwards.

6. The fully mixed product fall down to the discharge hole to be collected.

Tech. Para.

Specification

	Crushing Part	Mixing Part
Power	7.5-8kw	3kw
Rotation	150-600rpm
Capacity	1000-1500kg/h
Dimension	200013002900mm
Weight	480kg
